Certified Crash Rated Bollards – K4, K8 & K12 (M30, M40, M50)
“Designed in Germany, Manufactured in India”
Secure Innovative is a premier manufacturer, supplier, and exporter of K4, K8, and K12 Crash Rated Bollards in India, with state-of-the-art facilities in Ahmedabad. Our PAS 68, IWA 14, and ASTM certified crash-tested bollards are specifically engineered to withstand high-speed vehicle impacts, ensuring maximum perimeter protection for government complexes, defense zones, embassies, airports, and other critical infrastructure sites.
Backed by precision engineering and global expertise, Secure Innovative delivers world-class crash-rated bollards that are trusted nationwide and across international markets for their strength, reliability, and performance.

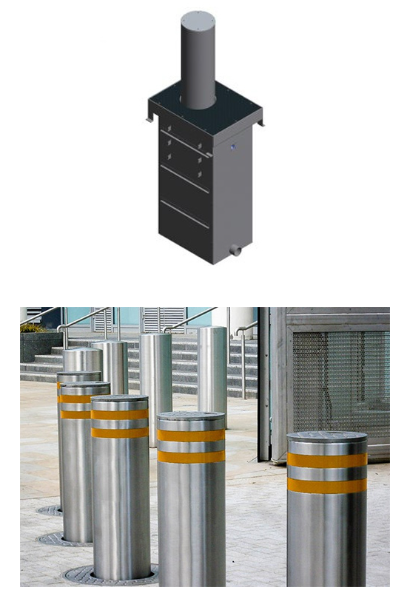

K4 Crash Rated Automatic Bollards (M30)
Model Number
SAB 400
The M30 Automatic Bollard is a high-security, retractable rising bollard designed to block unauthorized vehicle entry while permitting unhindered pedestrian access. Built in compliance with ASTM, DOS, PAS 68, and IWA 14 international standards, it ensures reliable perimeter protection for sensitive sites.
Equipped with an emergency fast operation mode, the bollard delivers a rapid 1.5-second response time, making it ideal for high-threat environments requiring both security and efficiency.
K4 (M30) - Technical Specifications
| Crash Rating | K4 (M30) |
| Blocking Height | 700 mm / 1000 mm |
| Blocking Diameter | 220 mm / 275 mm |
| Installation Depth | Approx. 1500 mm |
| Drive Unit | Hydraulic / Pneumatic |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–5 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Hydraulic Power Unit and others |

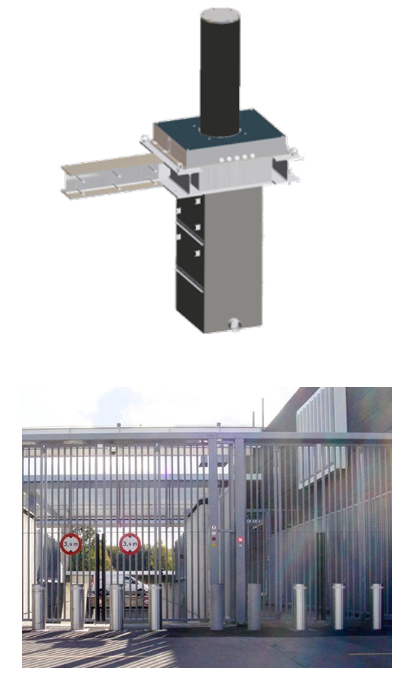

K8 Crash Rated Automatic Bollards (M40)
Model Number
Arjuna 800 (SCB 800)
The M40 Automatic Bollard is a high-security retractable rising bollard, engineered to block unauthorized vehicle entry while ensuring smooth pedestrian movement. Designed in line with globally recognized standards including ASTM, DOS, PAS 68, and IWA 14, it provides proven reliability for critical infrastructure protection.
Featuring an emergency fast operation mode, the bollard achieves a rapid 1.5-second response time, making it an ideal choice for high-threat and sensitive security zones.
K8 (M40) - Technical Specification
| Crash Rating | K8 (M40) |
| Blocking Height | 900 mm / 1000 mm |
| Blocking Diameter | 220 mm / 275 mm |
| Installation Depth | Approx. 1500 mm |
| Drive Unit | Hydraulic / Pneumatic |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–5 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Inbuilt Hydraulic Power Unit and others |

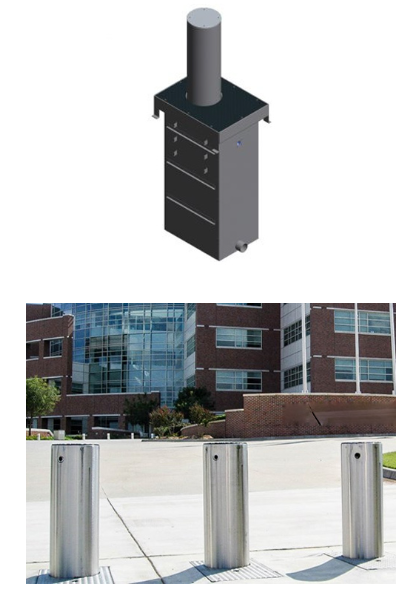

K12 Crash Rated Automatic Bollards (M50)
Model Number
Arjuna 1200 (SAB 1200)
The M50 Automatic Bollard is a high-security retractable rising bollard, built to prevent unauthorized vehicle intrusion while allowing unrestricted pedestrian access. Designed in compliance with internationally recognized standards including ASTM, DOS, PAS 68, and IWA 14, it delivers trusted performance for critical infrastructure protection.
With an emergency fast operation feature, the bollard offers a swift 2-second response time, ensuring rapid deployment in high-threat scenarios where security cannot be compromised.
K12 (M50) - Technical Specification
| Crash Rating | K12 (M50) |
| Blocking Height | 1000 mm / 1200 mm |
| Blocking Diameter | 275 mm / 355 mm |
| Installation Depth | Approx. 2000 mm |
| Drive Unit | Hydraulic |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–6 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Inbuilt Hydraulic Power Unit and others |

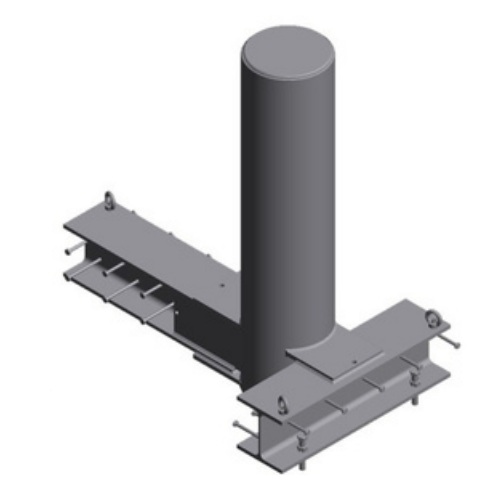

K4 Shallow Mounted Fixed Bollard (M30)
Arjuna 4 (Shallow 400)
K4 (M30) - Technical Specification
| Crash Rating | K4 / M30 (6.8-ton @ 48 km/h) |
| Foundation Depth | 300 mm (Shallow Mount) |
| Bollard Height Above Ground | 1000 mm |
| Bollard Diameter | 275 mm |
| Material | Heavy-duty steel with anti-corrosion coating |
| Finish Options | Powder-coated / Stainless Steel |
| Compliance | BIS, DOS, PAS68 & IWA14 |

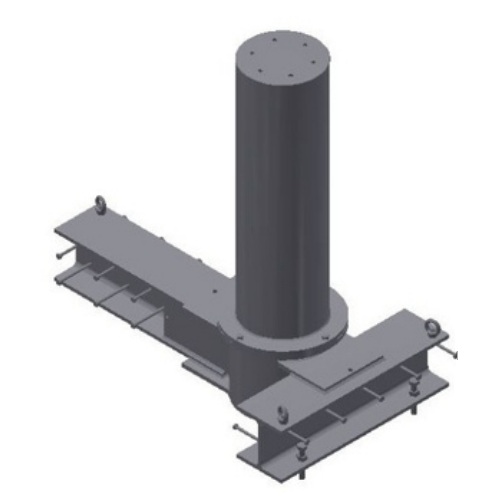

K8 Shallow Mounted Fixed Bollard (M40)
Shallow 800
K8 (M40) - Technical Specification
| Crash Rating | K8 / M40 (7.5-ton @ 64 km/h) |
| Foundation Depth | 350 mm (Shallow Mount) |
| Bollard Height Above Ground | 1000 mm |
| Bollard Diameter | 275 mm |
| Material | Reinforced steel core with protective housing |
| Finish Options | Powder-coated / Stainless Steel |
| Compliance | BIS, DOS, PAS68 & IWA14 |

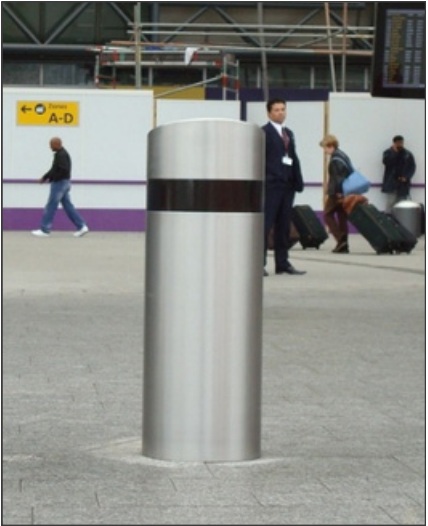

K12 Shallow Mounted Fixed Bollard (M50)
Shallow 1200
K12 (M50) - Technical Specification
| Crash Rating | K12 / M50 (6.8-ton @ 80 km/h) |
| Foundation Depth | 400 mm (Shallow Mount) |
| Bollard Height Above Ground | 1000 mm |
| Bollard Diameter | 275 mm |
| Material | Heavy-duty reinforced steel with anti-ram core |
| Finish Options | Powder-coated / Stainless Steel |
| Compliance | BIS, DOS, PAS68 & IWA14 |
Why Choose Secure Innovative?
Your Trusted Partner in HVM & Entrance Control
Secure Innovative is a leading manufacturer and supplier of premium Hostile Vehicle Mitigation (HVM) and Entrance Control solutions, serving clients across India and around the globe.
On-Time Delivery – Reliable, fast, and hassle-free service anywhere.
Competitive Pricing – Cost-effective solutions without sacrificing quality.
Advanced Technology – Smart engineering for maximum security with modern aesthetics.
From Bollards, Barriers, and Gates to Road Blockers and more, we provide end-to-end perimeter security under one roof.
📞 Available 24/7 – Connect with us today for inquiries and requirements.
We don’t just supply—we engineer.
At Secure Innovative, we are an Original Range Manufacturer (ORM) committed to delivering customized, performance-driven security solutions tailored to your site-specific needs.
From design and development to testing and deployment, we ensure every product meets the highest standards of safety and reliability. Whether you require simulation, on-site adaptation, or crash-tested assurance, we build solutions that protect what matters most.
